Dirt Bikes Gallery

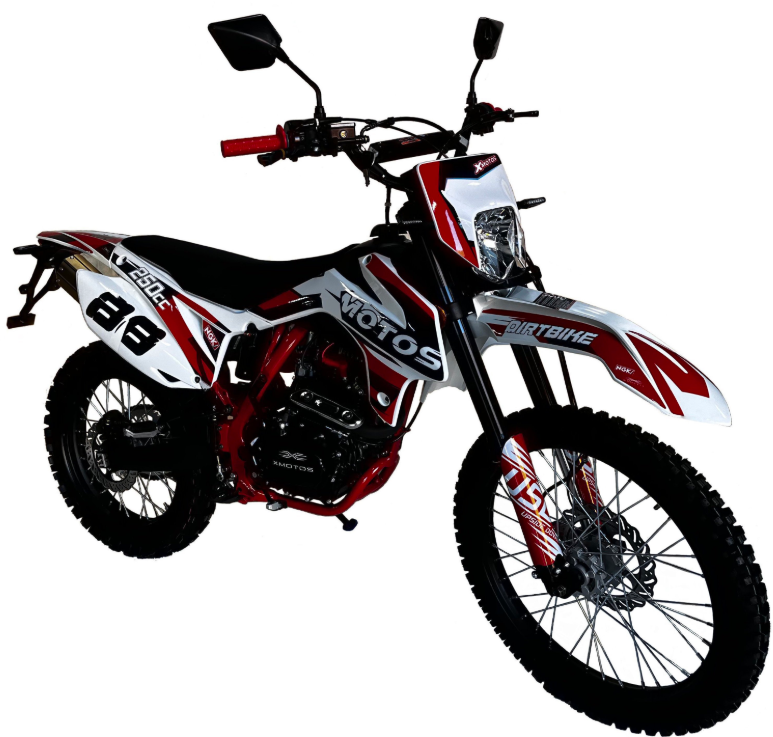

X-88 DLX
****with Mirror,Headlight,Taillight,
Speedometer , Adjustable Front Fork**
Engine Type: 232 CC, 4 Stroke, Single Cylinder
Cooling System: Air-Cooled
Gear: 5+N,Camshaft Upwards ,Tilting
Starting System: Electric/Kick Start
Ignition System: CDI
Transmission: Chain Drive
Chain: KMC 428
Spark Plug: NGK D8EA
Battery Type: 12V/7AH
Clutch: Wet, Multi-Disc, Manual
Maximum Speed: 55-60 Mph
Fuel Tank Capacity: 7.5L (1.98 Gal)
Ignition Type: Contactless AC-CDI
N.W.(LBS): 296, G.W (LBS): 370
Brake/F: Single 240mm Diameter Steel Disc, 1 Piston Caliper
Brake/R: Single 220mm Diameter Steel Disc, 1 Piston Caliper
Front Wheel: 21" Steel Rim,80/100-21 Knobby Tire
Rear Wheel: 18" Steel Rim,110/100-18 Knobby Tire
Frame: High Strength Steel Perimeter Frame
Maximum Power: 12.5KW / 7500 RPM (17 HP)
Bore & Stroke: 65.5x62.2
Packing Size(mm): 1770x420x810
Colors: Black, Blue, Red, Green* 2WD/4WD ***
***With Hitch Ball, Plastic Racks, Winch, Backrest***
Engine Type: 257cc, 4 Stroke, Single Cylinder
Transmission: Automatic L-H-N-R
Cooling System: Liquid-Cooled
Ignition: T.C.I
Starting System: Electric Start
Battery: 12V, 14Ah
Drive Train: Shaft Drive, On-Demand 2WD/4ED
Fuel Capacity: 3.8 Gallons
F/R Brakes: Hydraulic Disc (Hand)/ Hydraulic Disc (Foot)
Max Speed: 40-50 MPH
Front/Rear Tire: 24x8-12, 24x11-10
Suspension Front: Macpherson Independent Suspension
Suspension Rear: Swing Arm
Wheelbase: 51"
Seat Height: 34"
Ground Clearance: 8"
Max Horsepower: 22 HP
Compression Ratio: 9.8:1
Towing Capacity: 600 LBS
Bore Stroke: 72.39x66.8 mm
Max load: 240 LBS
Weight: G.W. / 750 LBS/ N.W. 650 LBS
Carton Dimensions: L*W*H: 86” x 46”x 33”
Colors: Black, Red, Blue, Army Green, Vista Camo

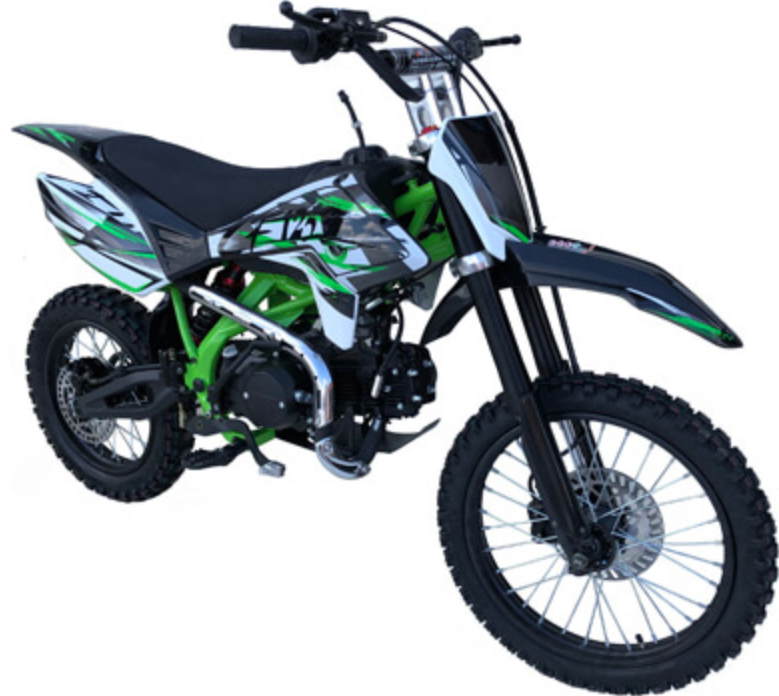

X-38
Engine Type: 125CC, 4 Stroke, Single Cylinder
Transmission: 4 Speed, Chain Drive
Cooling System: Air-cooled
Ignition: CDI
Starting System: Kick Start
Clutch: Manual Clutch
Carburetor: KF PZ26
F/Suspension: T4 Series Inverted Hydraulic, No Adjustable
R/Suspension: T4 Series Single Shock Absorber, No Adjustable
F/R Brakes: Single 210mm Diameter Steel Disc
Max Speed: 40MPH
Fuel Tank Capacity: 9.5L
Front Tire: 70/100-17
Rear Tire: 90/100-14
Seat Height: 805mm
Wheel Base: 1240mm
Ground Clearance: 290mm
Max Horsepower: 5KW/8000R/Min(7HP)
Max Torque: 7.2N.M/5000R/Min
Bore Stroke: 52.4/55.5mm
Max load: 199LBS
Weight: G.W. / 188 LBS/ N.W 159 LBS
Carton Dimensions: L*W*H: 61” x 18”x 31”
Colors: Red, Blue, Grey ,Green, Orange

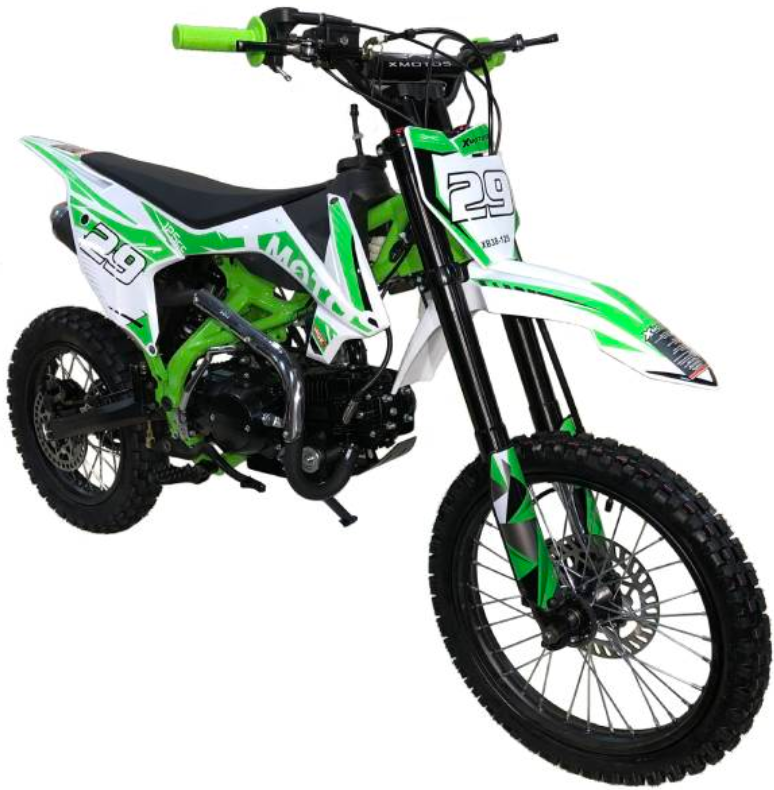

X-29
Engine : 125cc, 4 stroke, Single Cylinder
Gear : 4 Speed
Cooling : Oil-Cooled
Ignition System : CDI
Starting System : Electric & Kick Start
Battery: 12V,4Ah
Clutch: Manual Clutch
Final Drive : Chain Drive
F/Brake : Hydraulic Disc (Hand)
R/Brake : Hydraulic Disc (Foot)
Fuel Capacity : 5.4L
Max Speed : 35-45 MPH
Front Tire : 70/100-17 Knobby Tire
Rear Tire: 90/100-14 Knobby Tire
Seat Height: 33.5"
Ground Clearance: 14"
Max Load: 185 LBS
Weight: G.W.172LBS, N.W.188LBS
Bore & Stroke: 54X54
Carton Dimensions: L*W*H*: 63"x15"x32"
Color: Blue, Red, Orange, Kawasaki Green
Engine Type : 169cc, 4 stroke, Single Cylinder
Transmission : Automatic With Reverse
Cooling System : Air-Cooled
Ignition System : CDI
Starting System : Electric/Kick Start
Battery : 12V, 9Ah
Gearing : CVT + Reverse
Final Drive : Chain Drive
Front Brake : Drum Brake (Hand)
Rear Brake : Hydraulic Disc (Foot)
Fuel Capacity : 7.8L
Front/Rear Tire : 23x7-10/22x10-10
Front Suspension : Double A-Arm
Rear Suspension : Single Swing Arm
Max Speed : 45-55MPH
Max Load : 150LBS
Max Horsepower : 6.0KW/8000r/min
Colors : Metallic Red, Blue, Black, Orange, Green

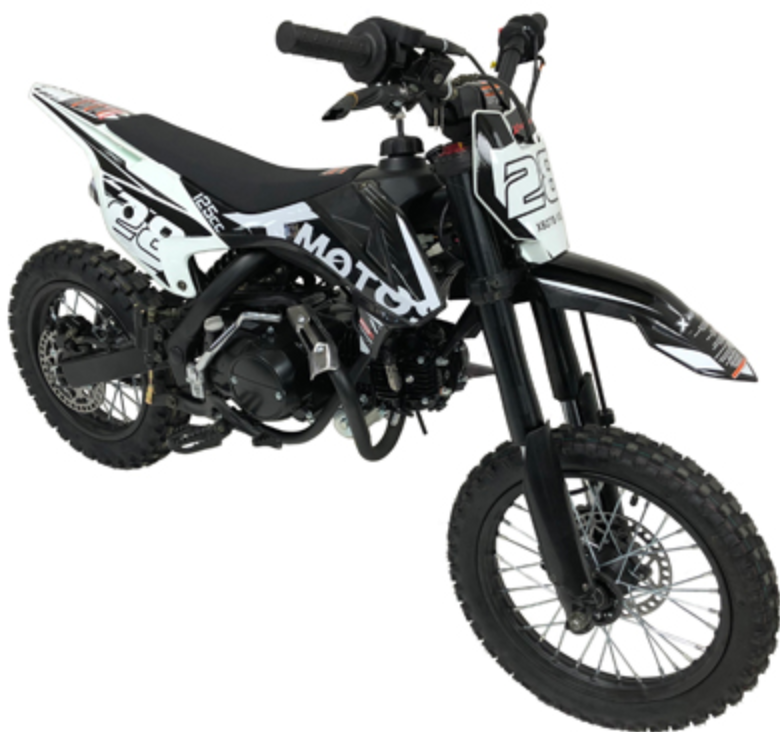

X-28
*With Speed Governor Screw*
Engine : 124cc, 4 Stroke, 4 Speed
Cylinder: One Cylinder
Cooling System: Air-Cooled
Transmission: Chain Drive
Starting System: Electric & Kick Start
Ignition System: CDI
Battery Type: 12V/4AH
Chain: KMC 420
Transmission : Semi Auto
Speed: 30-40 Mph
Fuel Tank Capacity: 2.6L
Seat Height: 28”
Brake F/R: Hydraulic(hand),Hydraulic Disc(Foot)
Tire F: 60/100-14,R:80/100-12 **Knobby Tire**
Max Load: 165LBS
Weight: N.W:124 LBS,G.W:146 LBS
Ground Clearance: 12"
Wheel Base: 1075mm
Bore & Stroke: 52.4/49.5
Carton Dimension: 55"x15"x26"
Colors: Black, Blue, Red, Green, Orange
